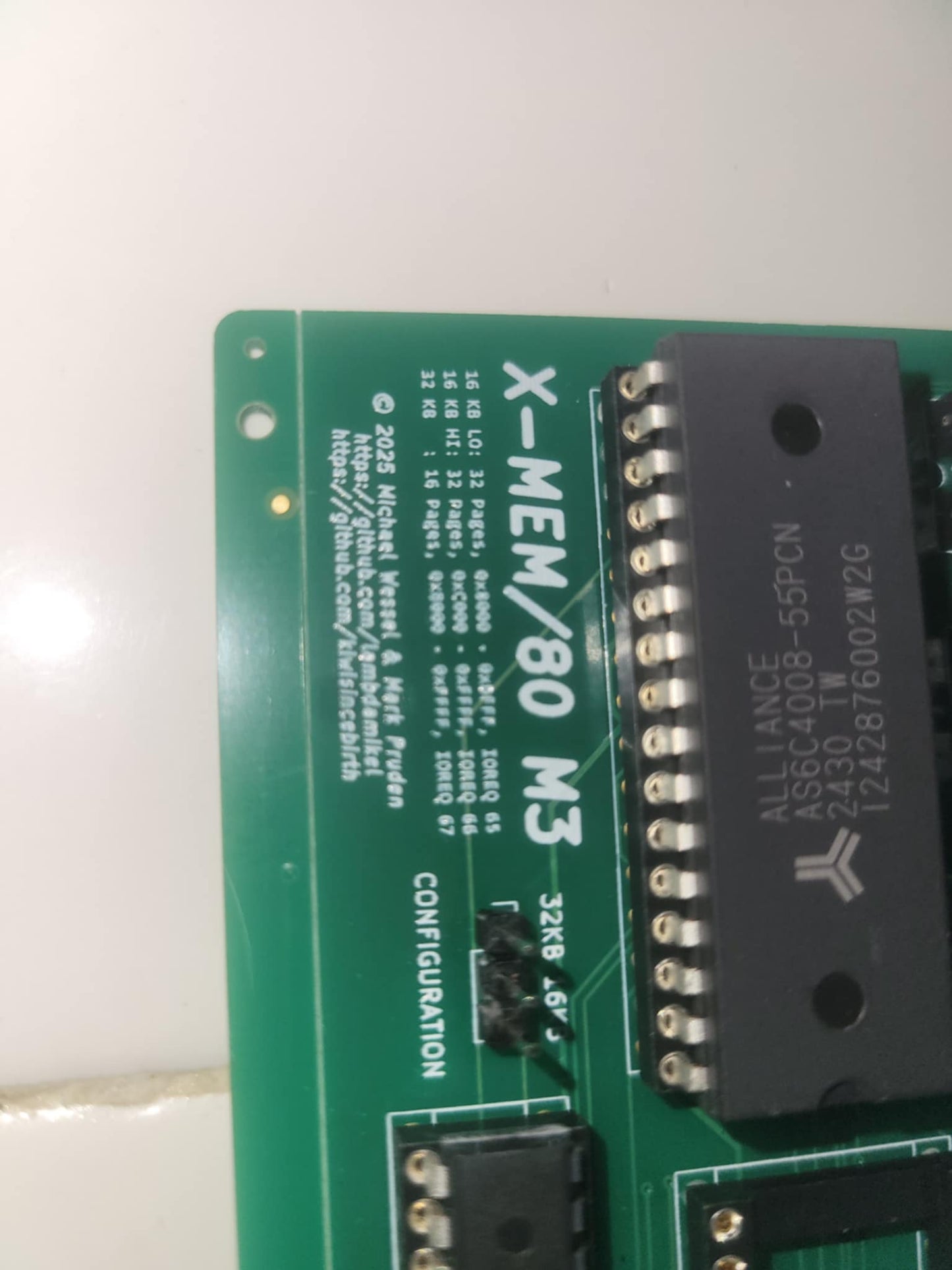

X-MEM/80 Model III

X-MEM/80 is a 512 KB paged memory expansion for the TRS-80 Model 1 and Model III. No permanent modifications are required for installation. The Model 1 version is entirely external (via expansion port edge connector), and the Model III version simply plugs into the existing Z80 socket on the Model III motherboard - the CPU needs to be relocated from the Model III motherboard onto the X-MEM/80 board, but it is already socketed. No motherboard modifications are required, but the RF shielding in the Model III needs to be removed.

Unlike previous memory expansions for the Model I (i.e., SuperMem), this is a minimally invasive memory expansion that does not require any soldering for installlation.

X-MEM/80 is partially SuperMem compatible, as it allows to "bank" the upper 32 KBs (address range from 0x8000 to 0xFFFF) with the memory on the card.

A jumper allows configuration in two different modes - SuperMem and X-MEM/80 modes:

• in SuperMem mode, it offers 16 pages of 32 KBs, which are
• mapped into the 0x8000 to 0xFFFF (= upper 32 KB) range. To
• select the page number, out 67,<page number> is used. The page
• number can also be read back via inp 67. *Unlike SuperMem,
• X-MEM/80 does not allow to bank the lower 32 KBs of the Model 1
• memory.* However, the existing SuperMem software (see below) doesn't
• seem to use this mode anyway, and works fine with X-MEM/80's
• SuperMem mode. in X-MEM/80 mode, it offers **32 pages of 16
• KBs**, which can be mapped to the lower and higher 16 KB page of the
• upper 32 KB range, i.e., the lower 16 KB page from 0x8000 to
• 0xBFFF and the higher 16 KB page from 0xC000 to 0xFFFF. To
• select the lower 16 KB page, out 65, <lower page number> is used,
• and out 66, <higher page number> for the higher 16 KB page. Note
• that it is possible to map the same pysical 16 KB page into both the
• lower and higher address range (but this is usually not desirable).

The Model III version plugs into the CPU socket on the motherboard and works with any Model III regardless of internal memory configuration (no matter whether it has 16, 32, or 48 KBs installed), Then, a cable with a 3-pin 2-position selector switch can be routed to the outside of the Model III case for mode selection:

The internal RF shielding needs to be removed - this won't affect Model III operation. Otherwise, you won't be able to close the case again. Careful with the monitor neck!! More than one person destroyed the CRT by breaking off the tube neck during re-assembly.

In addition, an extra 40 pin DIP precision socket is required and simply plugged into the existing Model III CPU socket. This provides a more stable connection, and, more importantly, adds some extra spacing between X-MEM/80 and the Model III motherboard. Note that there are electrolytic capacitors C217, C129, and C211 on the Model III motherboard which will prevent X-MEM/80 installation without the extra spacing created by the precision socket otherwise.

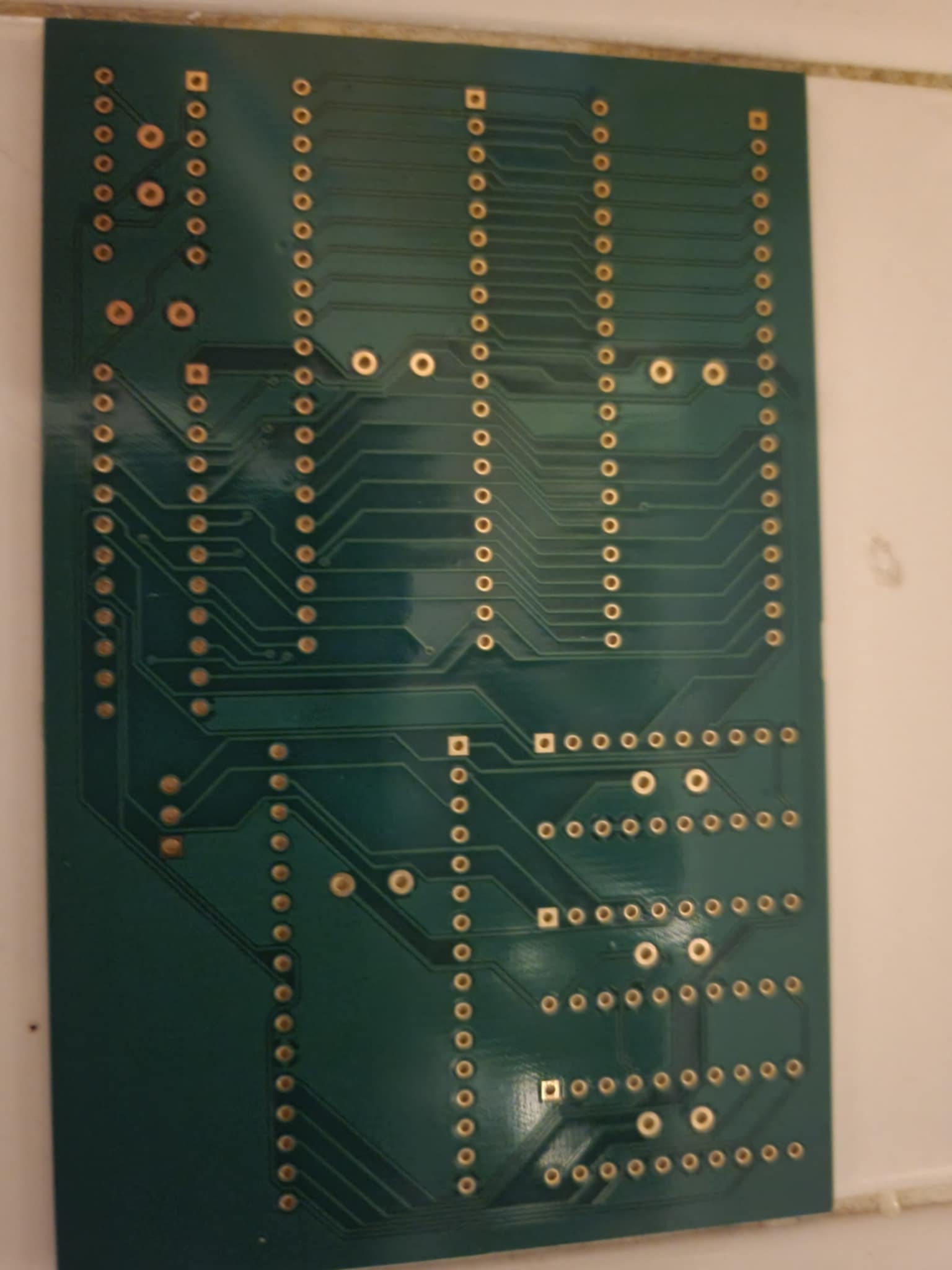

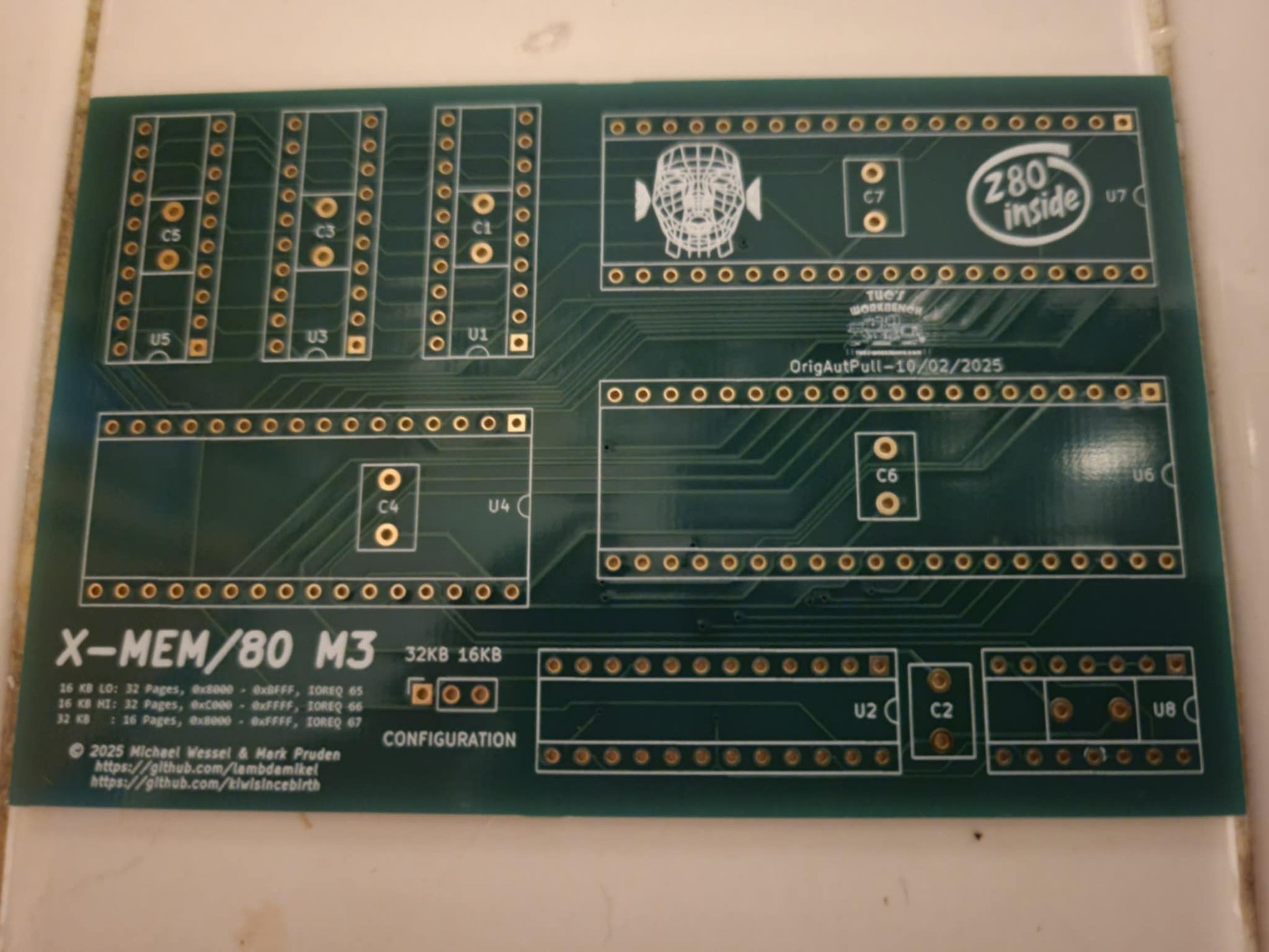

(This was developed by Github user lambdamikel and used with permission. Boards (Bare and assembled) are produced in a 3rd party PCB facility)
