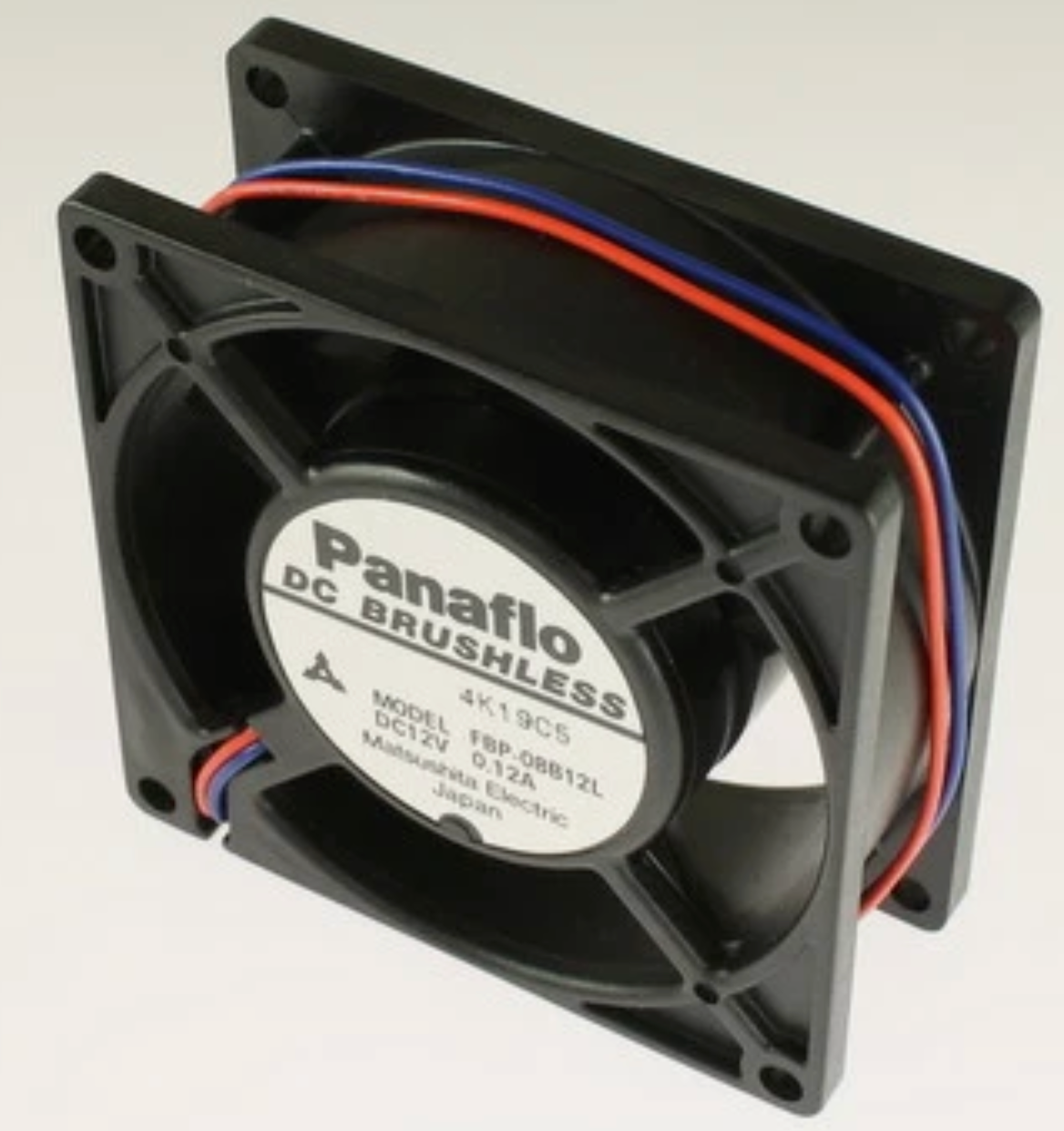

Panaflo FBP-08B12L / FBP08B12L

The FBP-08B12L is an 80mm DC brushless axial cooling fan manufactured by Matsushita (Panasonic/Panaflo). It operates on 12V DC, draws 0.12A of current, and spins around 1350–2400 RPM to provide a quiet and reliable airflow for various electronic components and equipment. It is a direct 1:1 replacement to the Panaflo FBP-08B12L / FBP08B12L fan found in the TRS-80 Model 4P.

Quick Specifications

• Brand: Matsushita / Panaflo
• Part Number: FBP-08B12L
• Dimensions: 80 mm x 80 mm x 25–32 mm (depending on casing revision)
• Voltage: 12 VDC
• Current: 0.12 A
• Speed: 1350 to ~2400 RPM
• Connector/Leads: 2-wire bare leads (red/black)
