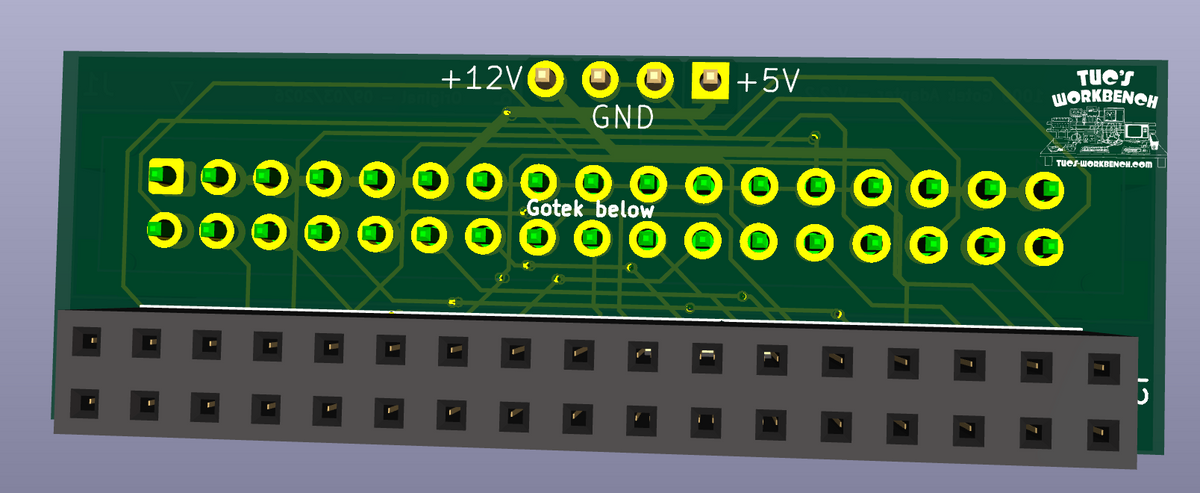

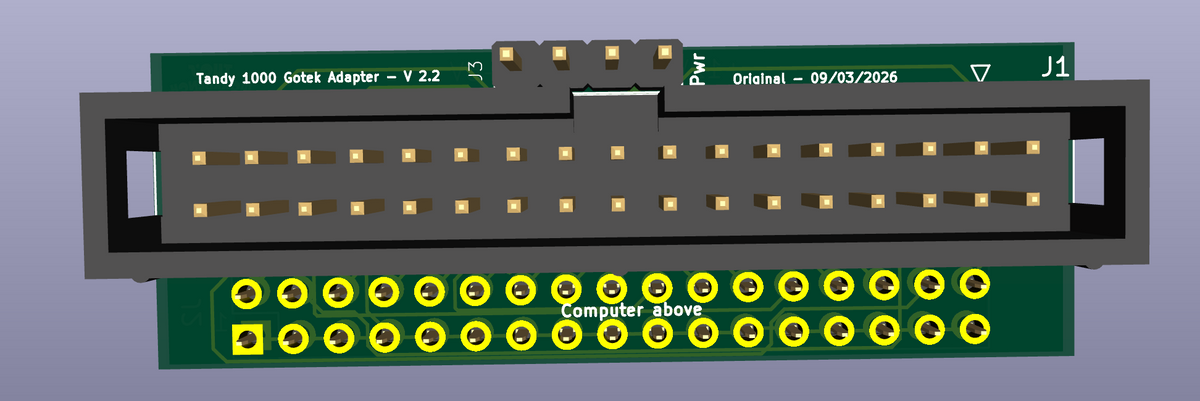

Tandy 1000 HX Internal Gotek Adapter

This is an internal Gotek Adapter for the Tandy 1000 HX machine. IT MAY WORK ON OTHER TANDY 1000 MACHINES, contact us for more information.

This adapter plugs into the back of the Gotek using a keyed plug. Once you plug the Tandy 1000 HX floppy in, the power already on the cable (Unless it has been modified) can be used to power the Gotek via the supplied Berg connector.

(Created internally, produced at a 3rd party PCB House)

(Multiple variants were created, while it might look different, they all work properly)
