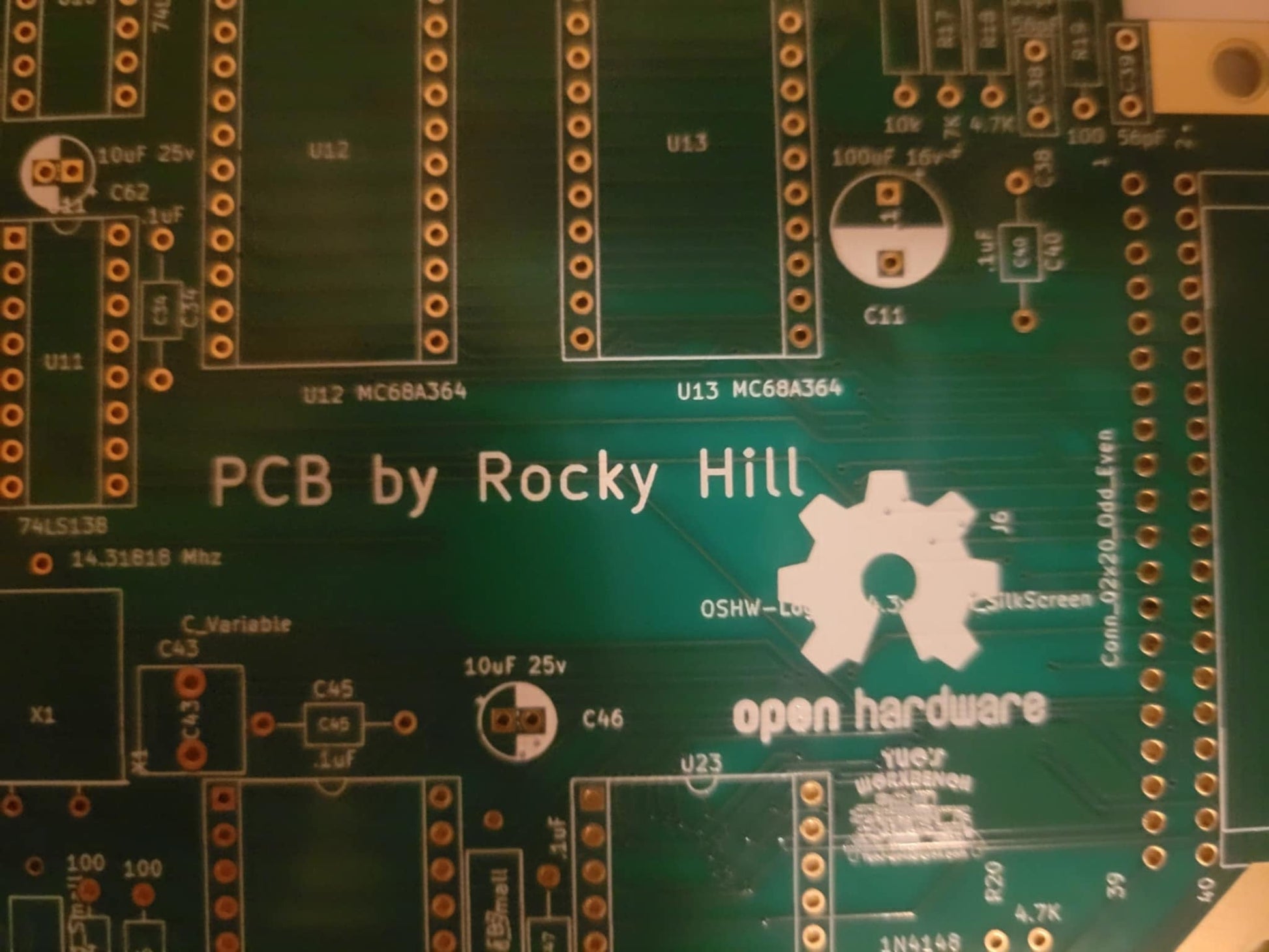

This is an ENIG print of the Rocky Hill TRS-80 Color Computer 2 [26-3026 / 26-3027].

This project was created from schematics that are available in several locations including the "Service Manual: TRS-80 Color Computer 2 NTSC Version (Catalog Number: 26-3026/7)"

Completed

• Schematic
• Bill Of Materials
• PCB

Tested

• PCB fit: Needed slight adjustment but usable
• Keyboard: Works.
• Audio/Video: Works.
• Joystick ports: Works.
• I/O port: Works.
• Cassette port + relay: Works.
• Cartridge slot: Works tested with Mega-Bug.

We include schematics, BOM and build instructions as available.

(This was developed by Rocky Hill (qbancoffee on Github) and is produced by an external PCB manufacturer with his permission)
