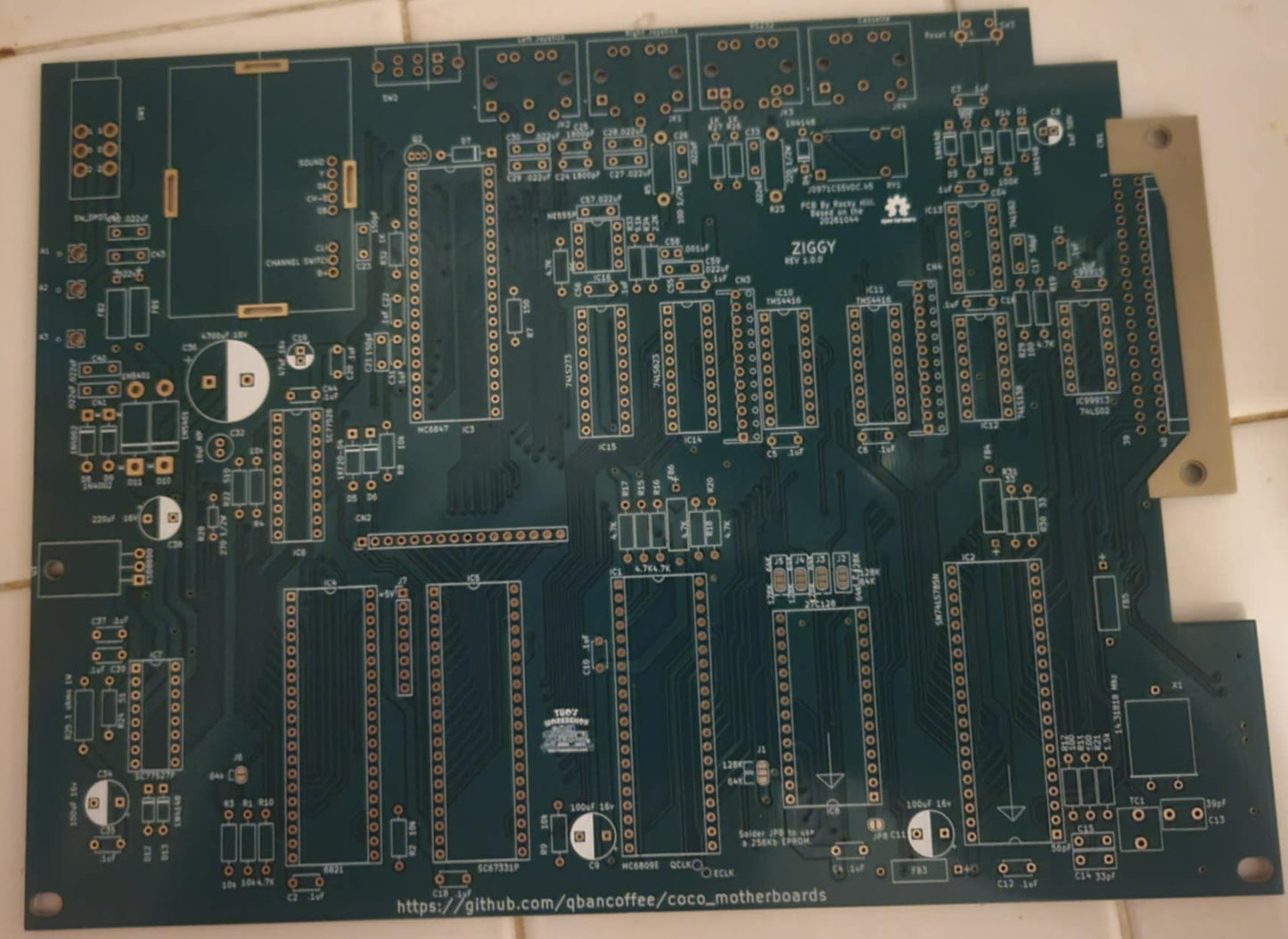

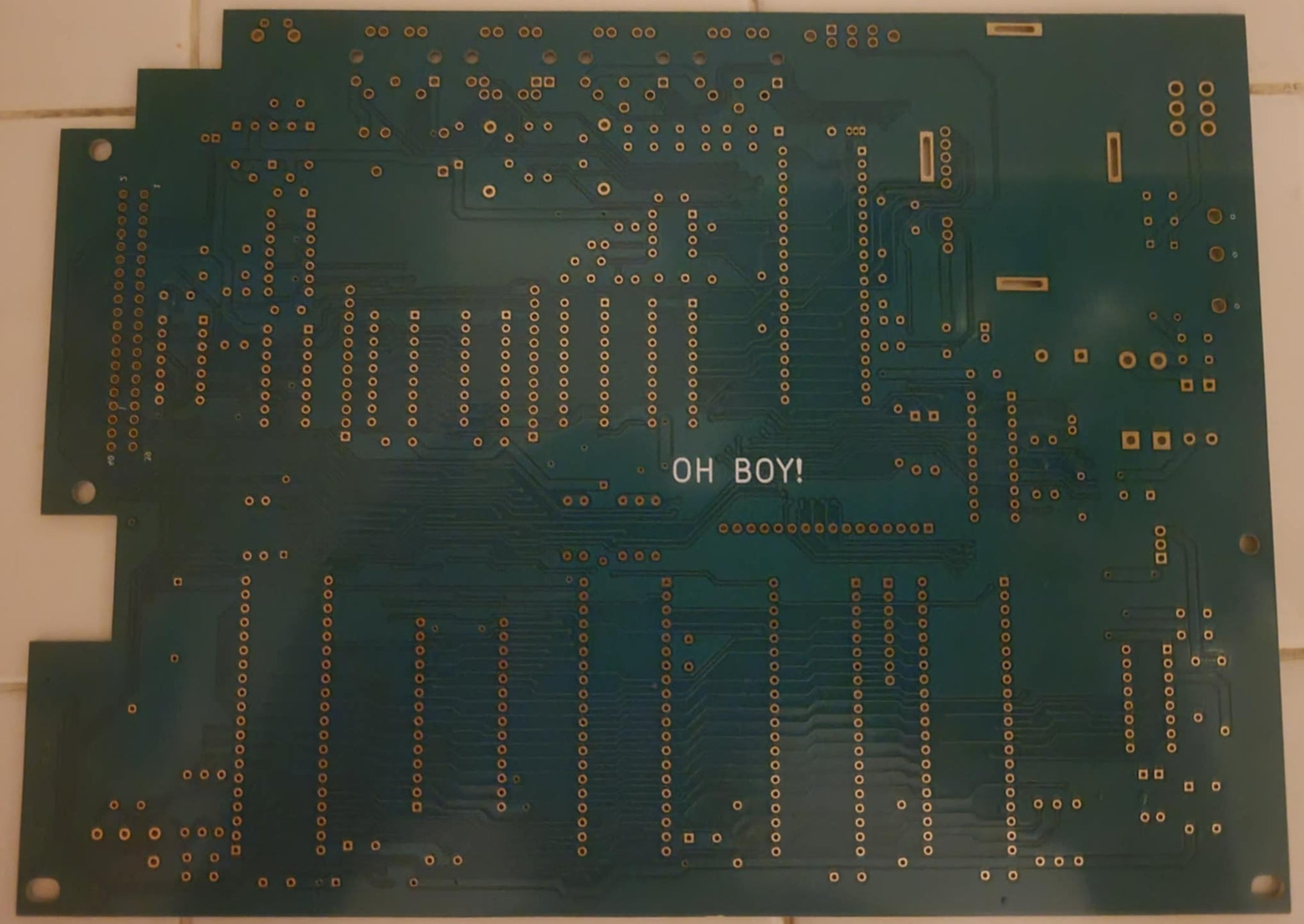

TRS-80 Color Computer 2 [26-3134B / 26-3136B] Bare Motherboard

This is an ENIG print of a TRS-80 Color Computer 2 [26-3134B / 26-3136B] motherboard based on "Service Manual: TRS-80 Color Computer 2 NTSC Version (Catalog Number: 26-3134B/26-3136B)" It should be a drop in replacement for the 36-3134B and 26-3136B.

We provide schematics, BOM, building information as available.

(This board was developed by Rocky Hill (qbancoffee on github) and is produced by an outside PCB house with his permission)
