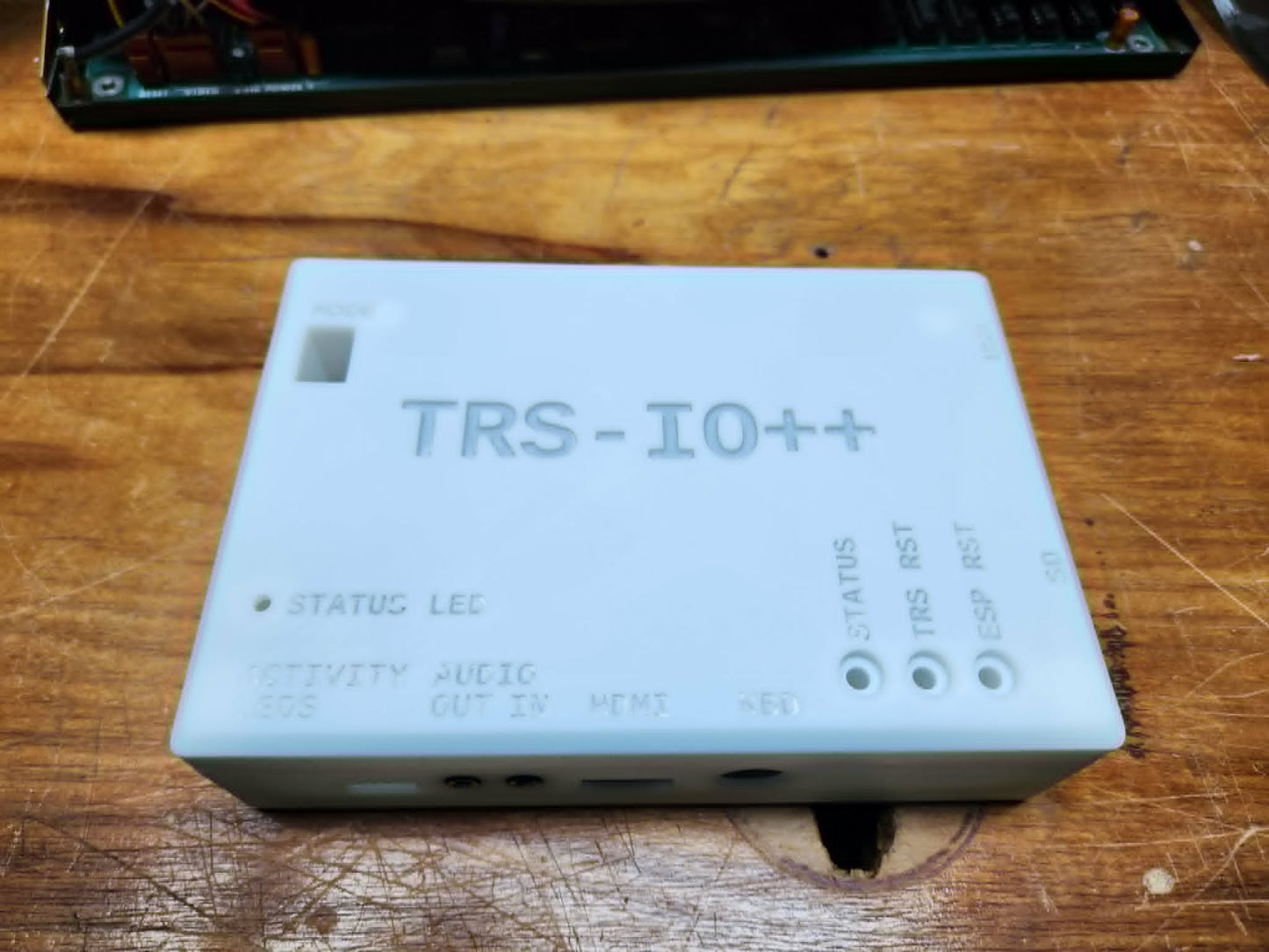

TRS-IO++

Overview

TRS-IO++ is an all-in-one card featuring a 40- as well as a 50-pin edge connector. It combines the original TRS-IO functionality where it can be connected to a Model I/III/4/4P as well as PocketTRS mode where it emulates a Model I/III/4/4P. Depending on how it is configured, TRS-IO++ can operate in two different modes:

• TRS-IO mode: TRS-IO++ acts as a TRS-IO card that can be connected to a Model I/III/4/4P via its 40- or 50-pin edge connector respectively. In this mode it offers TRS-FS, TRS-NIC, FreHD as well as the RetroStore.

• PocketTRS mode: TRS-IO++ acts as a Model 1/III/4/4P. In this mode, external peripherals such as vintage harddisks can be connected to TRS-IO++'s 40- or 50-pin edge connector.

Two options :

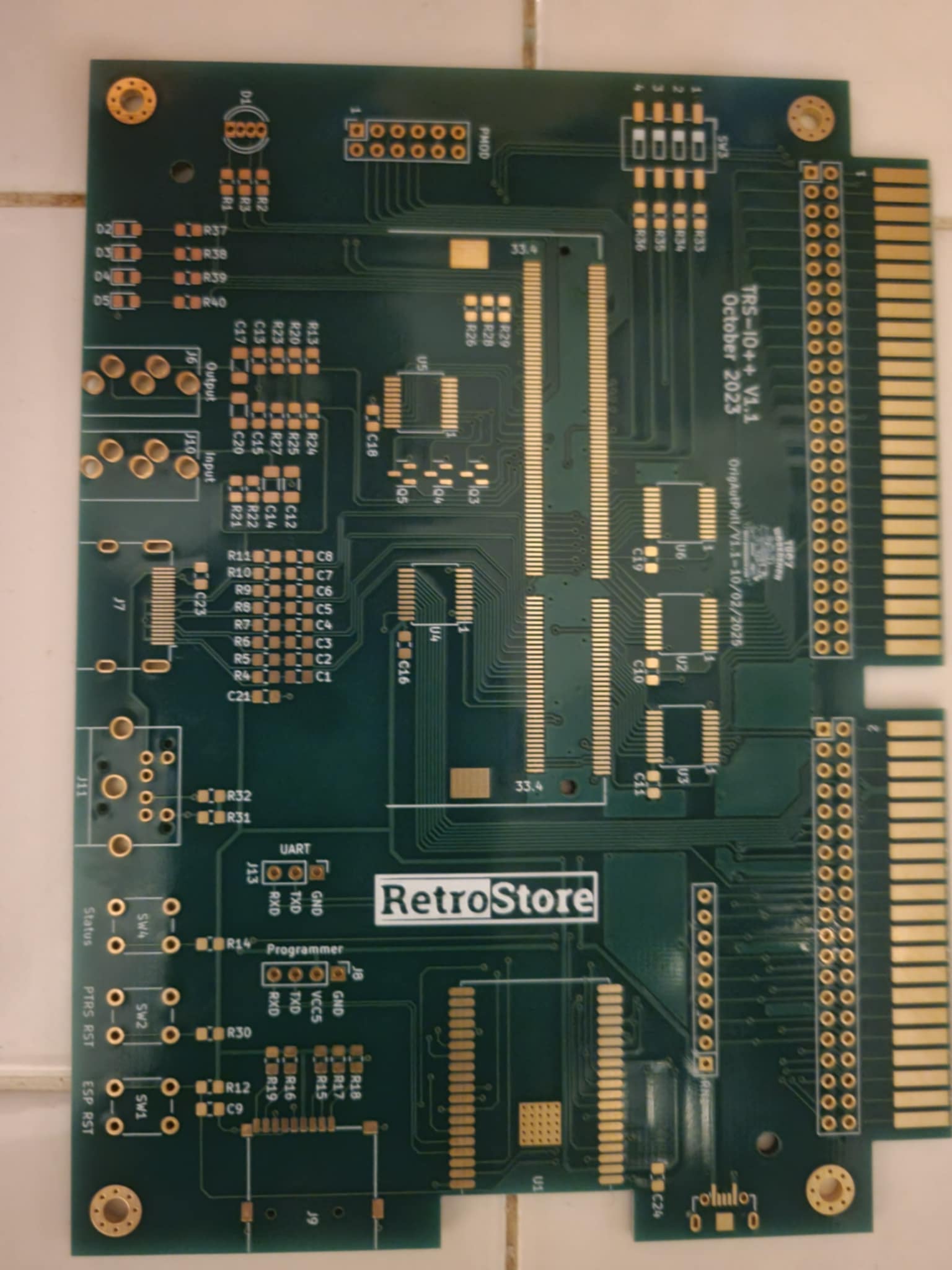

Bare board - Just the board and the pointers to the BOM and instructions

Fully Populated Board - Everything is ready to go, completely pre-programmed, and includes -

• Board
• PS/2 to USB adapter
• SD card with FreHD images

(This was developed by a team of people, using the Github of apuder. It is produced with permission. Boards (Bare and Assembled) are done by a 3rd party PCB facility.
